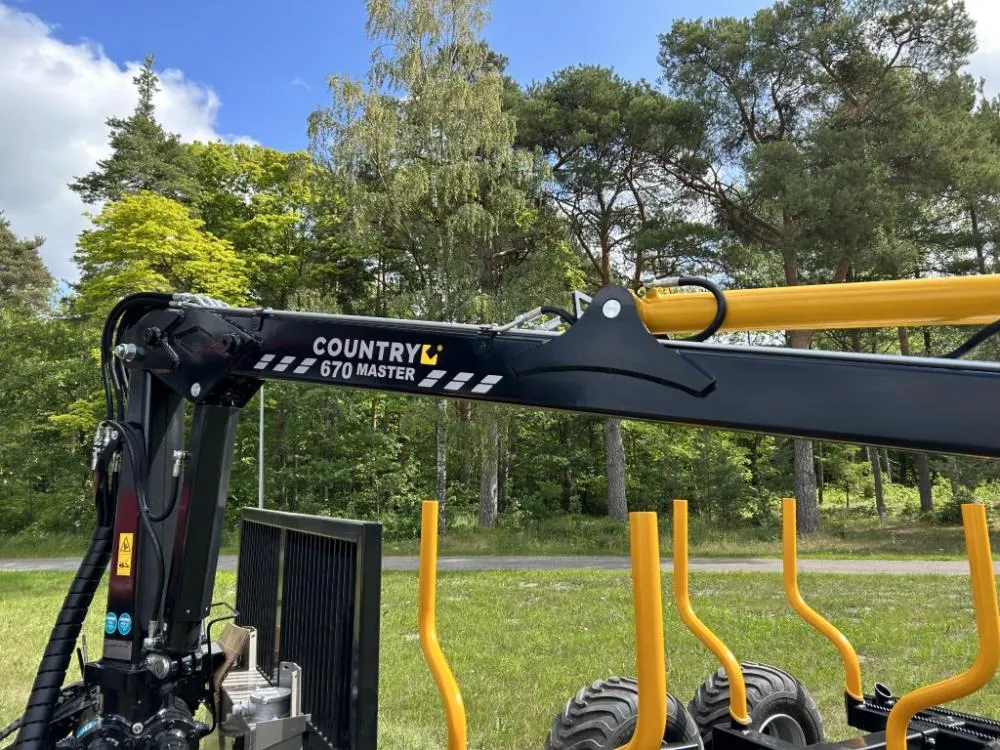

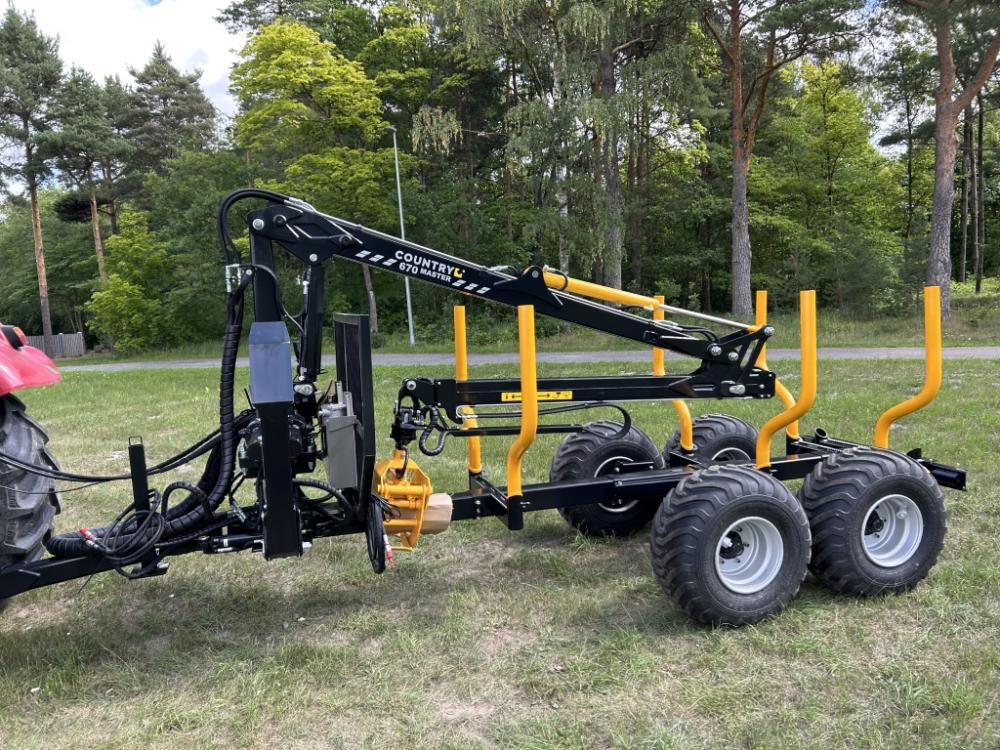

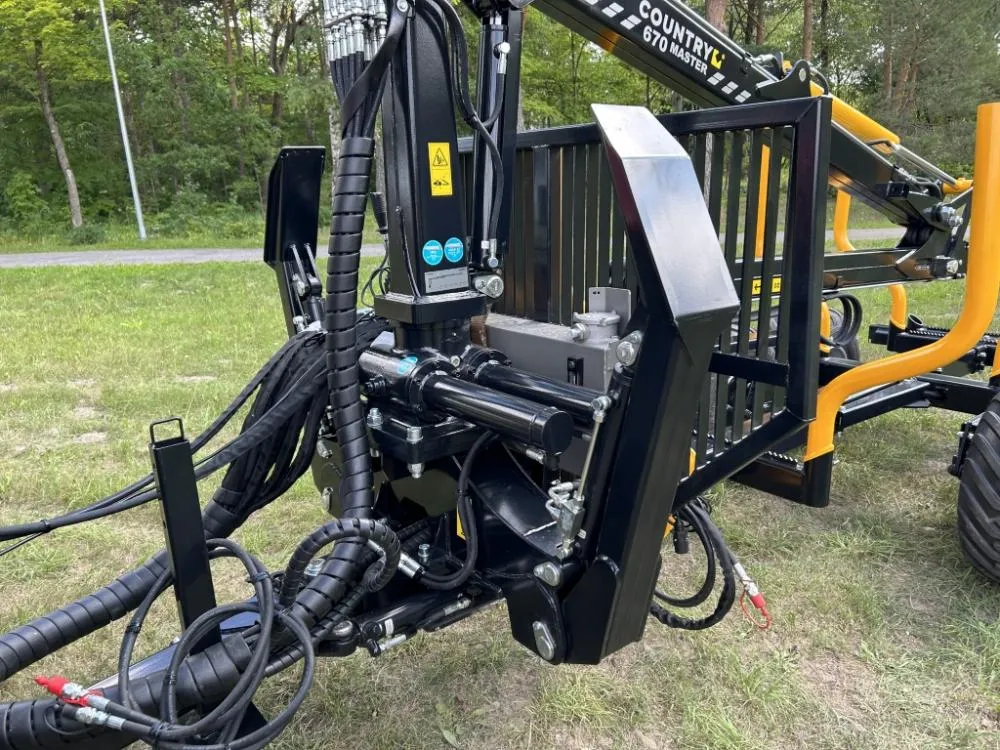

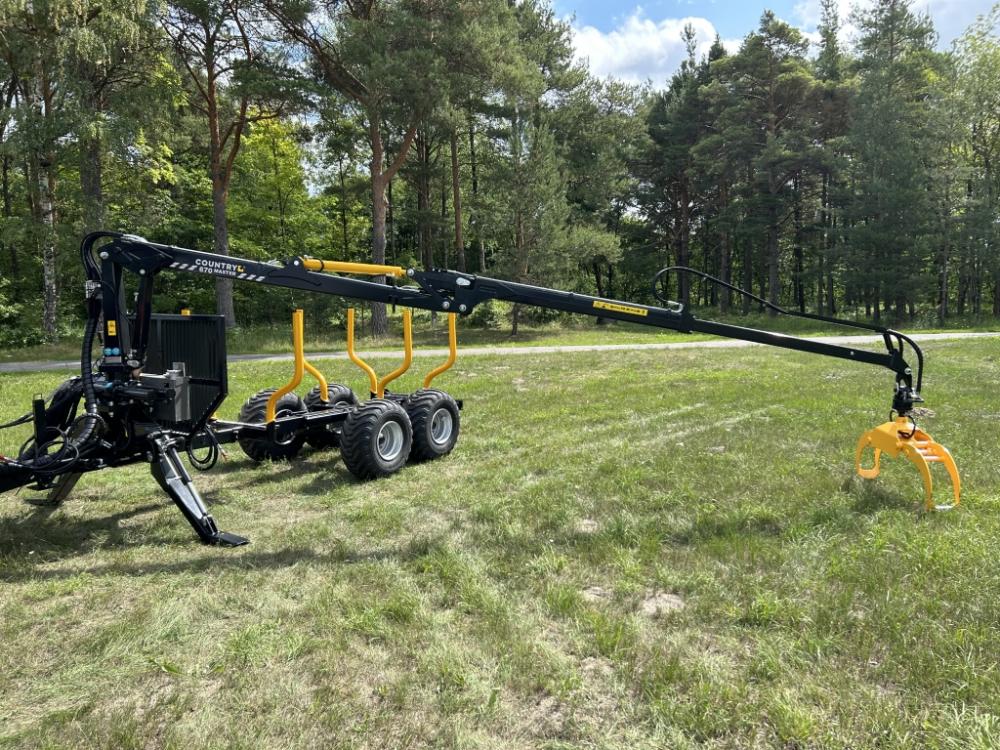

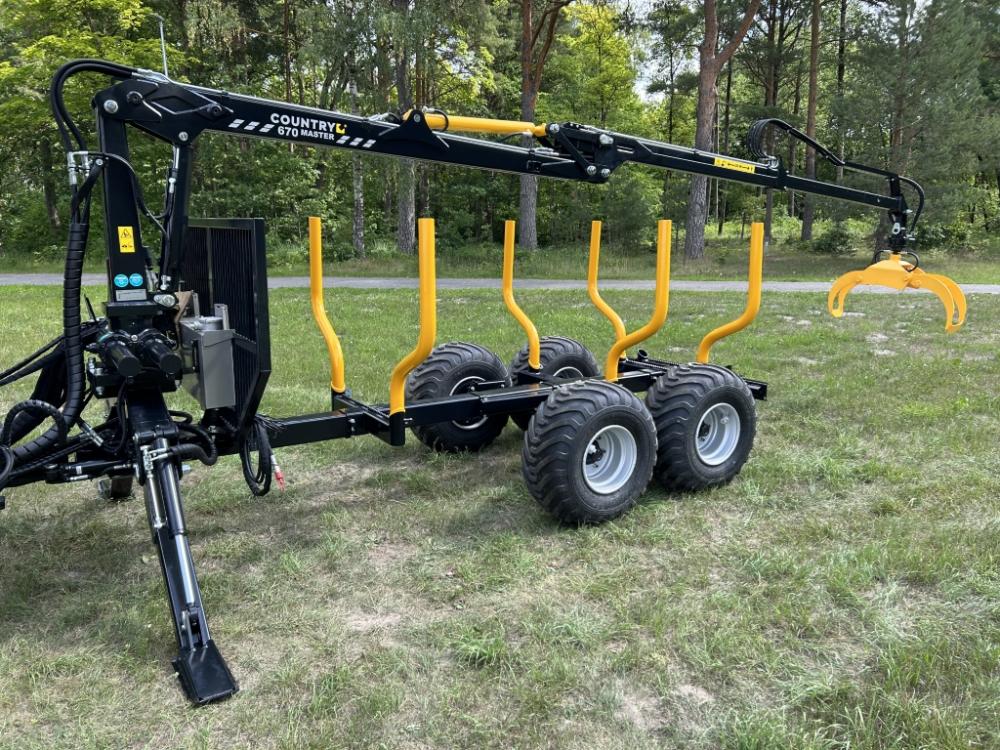

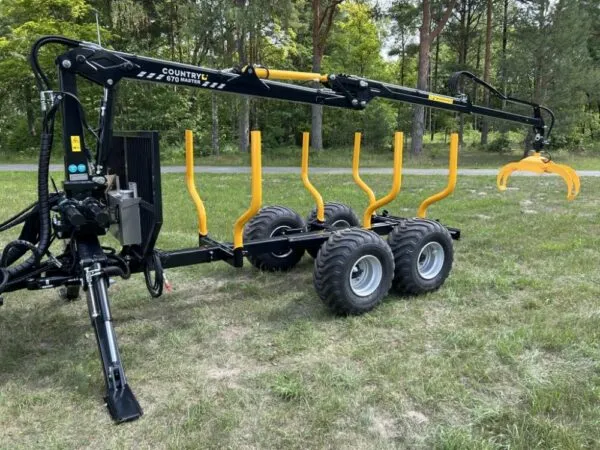

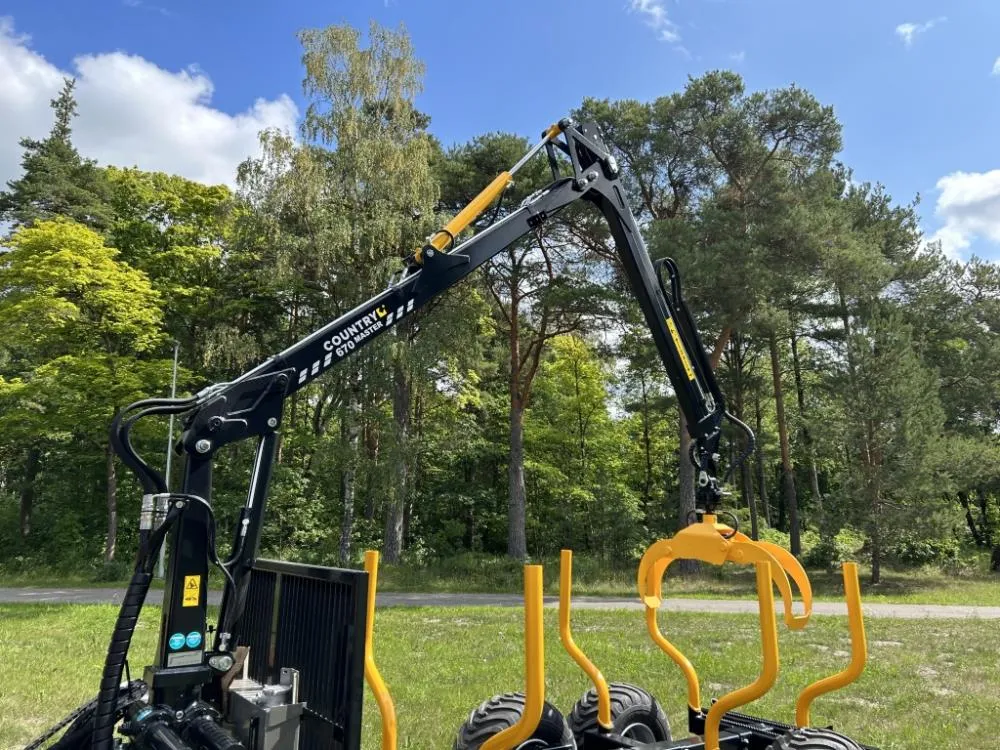

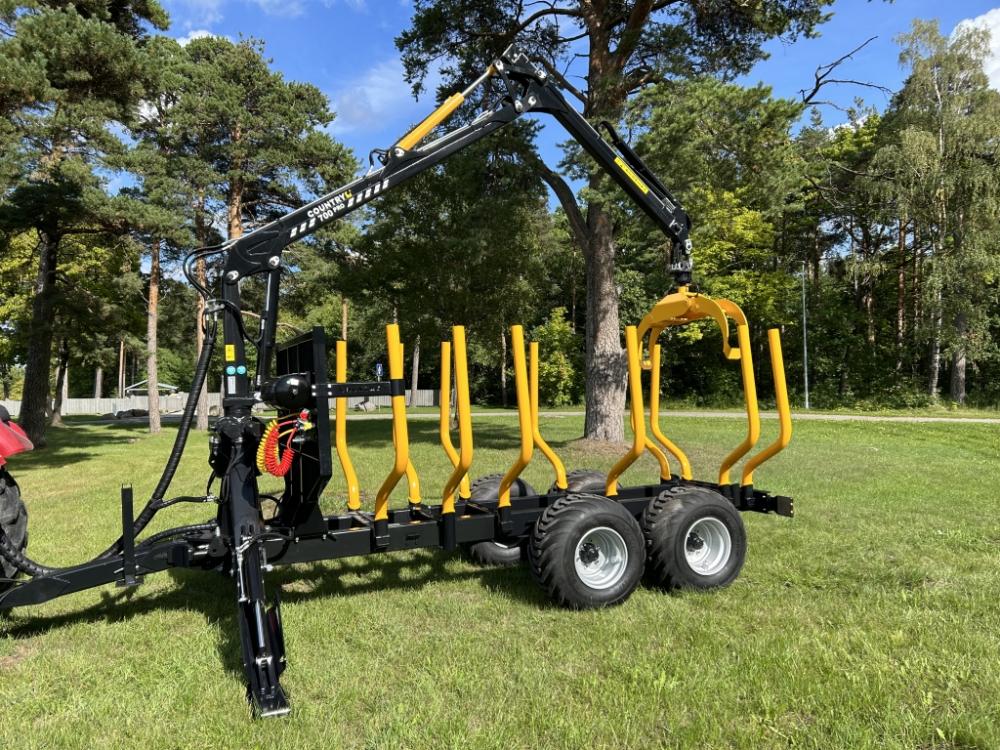

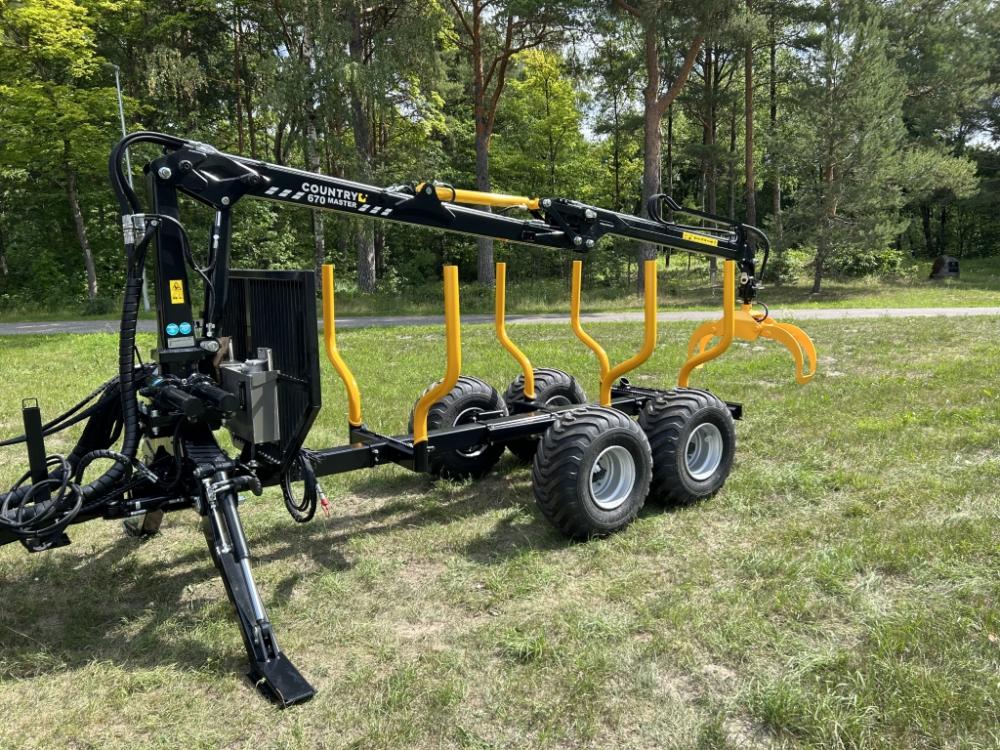

| 670 Master |
|

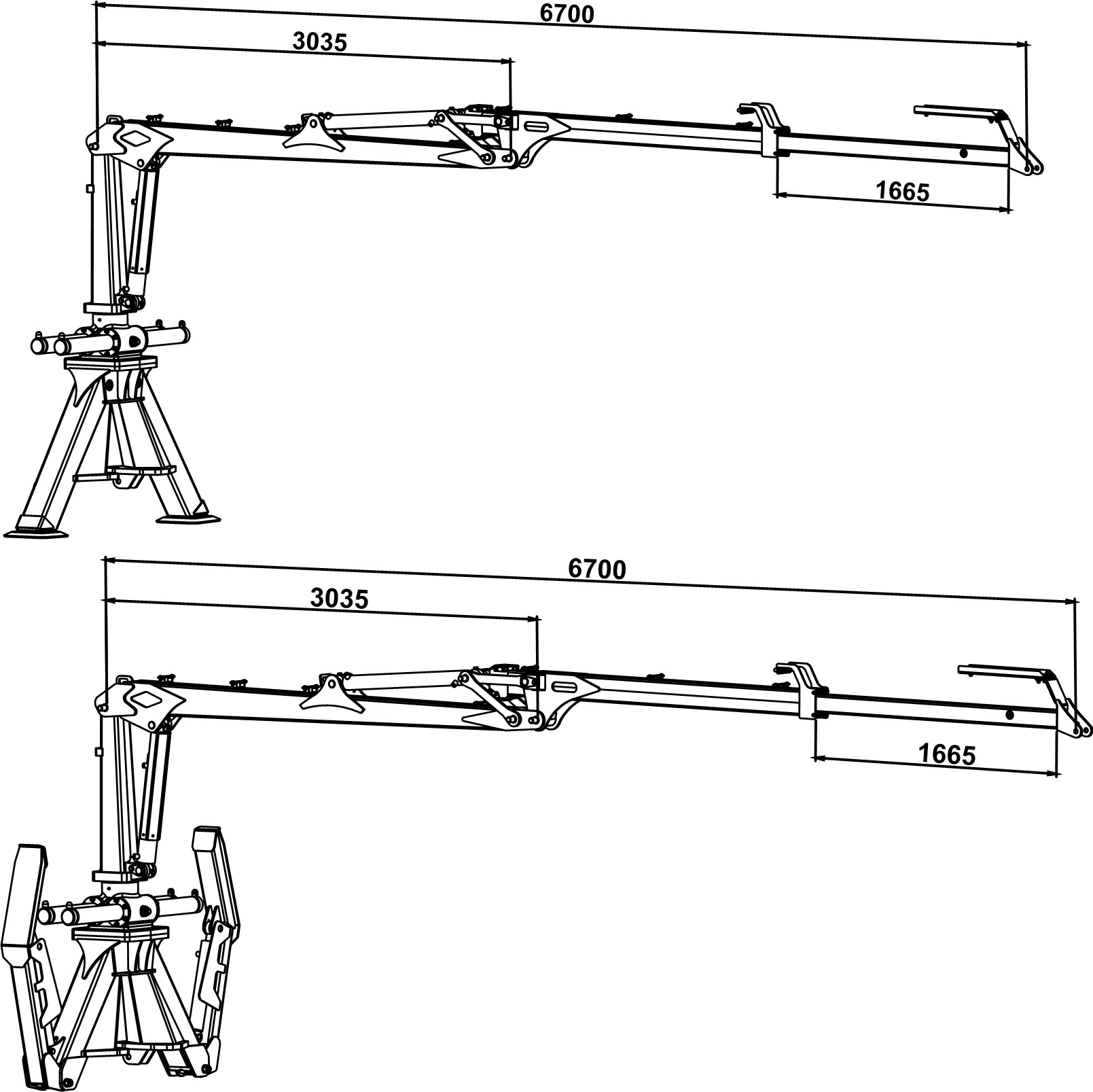

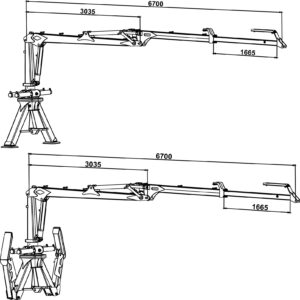

| Max reach (m) |
6.7 |
| Lifting torque gross (kNm) |
39 |
| Lifting capacity at 3,5 m (kg) |
870 |
| Lifting capacity at full reach (kg) |
451 |
| Slewing torque (kNm) |
12 |
| Slewing cylinders (pcs) |
4 |
| Slewing angle |
380 |
| Rotator max axial load (kN) |
30 |
| Telescopic boom stroke length (m) |
1.7 |
| Working pressure (bar) |
190 |
| Crane’s weight without support legs and valve block (kg) |
565 |
| Recommended pump capacity (l/min) |
30-45 |
| Support legs type |
A or FD |
| A type (telescopic) support legs weight, kg |
319 |
| FD type (flap down) support legs weight, kg |
338 |
| Recommended grapple size (m2) |
0.17 or 0.22 |
